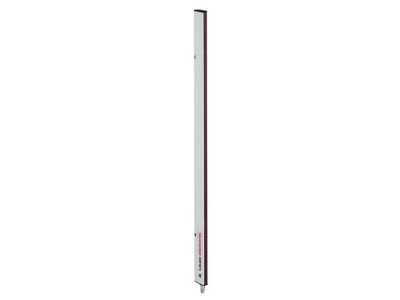

CSL505-R25-375-M8 Light curtain receiver

CSL505-R25-375-M8
A light curtain receiver designed for precise object detection with various scanning options.
  • SKU
    2110-50131331
  • Manufacturer code
    50131331
  • Number of semiconductor outputs with signalling function
    2
  • Fade-out possible
    false
  • Type of switching output of the OSSD
    Other
  • Type of electric connection
    Connector M8
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    10 mm
  • Height of sensor
    27 mm
  • Length of sensor
    450 mm
  • Detection capability for test bodies
    27.5 mm
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Cascadable
    false
  • Ambient temperature
    -30 - 50 °C
  • With muting function
    false
  • Override possible
    false
  • Resolution of the light curtain
    27.5 mm
  • Reduced resolution
    false
  • Operating range
    5 m
  • Safety field height
    375 mm
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With beam coding
    true
  • Clock control possible
    false
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP65
  • Degree of protection (NEMA)
    Other
  • Scope of delivery of the one-way system
    Receiver
  • Response time
    1 s
  • Most suitable applications
    Precise object detection
  • Beam spacing (mm)
    25
  • Special version
    Warning output
    Parallel-beam scanning
    Diagonal-beam scanning
    Crossed-beam scanning
    Teach input
  • Measurement field length (mm)
    375
  • Operating range (m)
    0.3 ... 5
  • Manufacturer Leuze

Product attachments

DS_CSL505-R25-375-M8_eng_50131331 (LINK)
