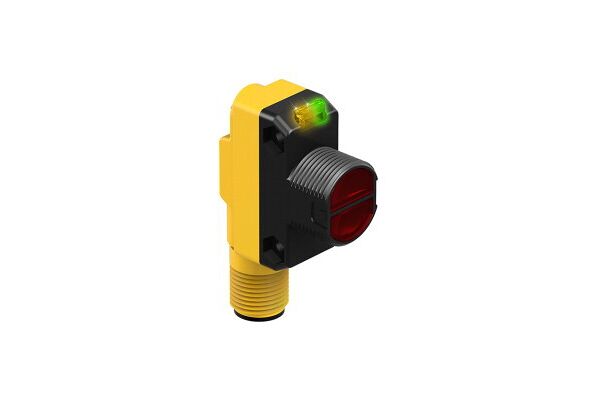

QS18VN6LPQ8 Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

QS18VN6LPQ8

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Operating voltage 10…30 VDC, Max. range 3500 mm, Male M12 × 1, 4-pin, Protection class IP67, LED all-round visible, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, NPN switching output, changeover

  • SKU
    0662488664510
  • Manufacturer code
    3066451
  • Rated switching distance
    3500 mm
  • Max. switching distance
    3500 mm
  • With reflector
    false
  • Type of electric connection
    Connector M12
  • Type of switching output
    NPN
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid

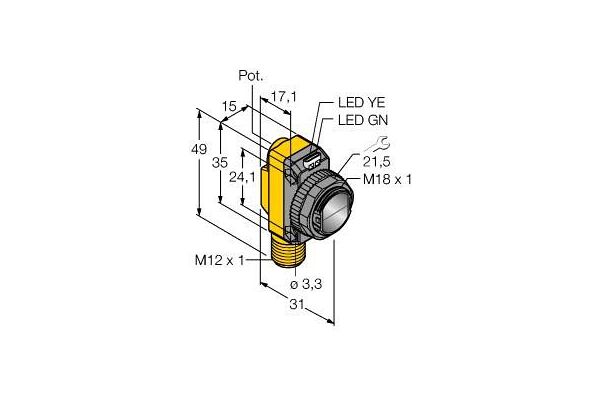

  • Width sensor
    15 mm
  • Height of sensor
    35 mm
  • Length of sensor
    31 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 70 °C
  • Response time
    0.6 s
  • Switching frequency
    800 Hz
  • Wavelength of the sensor
    630 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Diameter sensor
    18 mm
  • Housing material
    Plastic
  • Connector gender
    male
  • Type of switching output
    NPN

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-56235-e265bbf3503a06bf69410c2341d75ec2.pdf (PDF, 664.52 kB)
