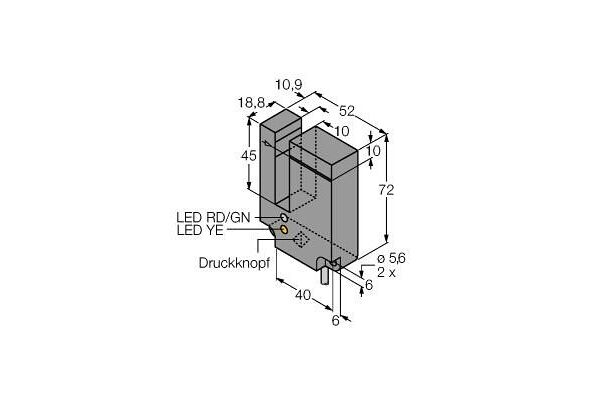

SL10VB6VY Photoelectric Sensor, Bifurcated Retroreflective Sensor

SL10VB6VY

Photoelectric Sensor, Bifurcated Retroreflective Sensor, Operating voltage 10…30 VDC, Max. range 10 mm, Cable length 2 m, Cable, PVC, 2 m, 5-wire, Protection class IP67, Slot width 10 mm, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, Switching output, bipolar, Light or dark operation via grey core / PIN 5 adjustable

  • SKU
    0662488603670
  • Manufacturer code
    3060367
  • Rated switching distance
    10 mm
  • Max. switching distance
    10 mm
  • Type of electric connection
    Cable
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Special construction
  • Width sensor
    18.8 mm
  • Height of sensor
    52 mm
  • Length of sensor
    72 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    0.3 s
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Fork width
    10 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-50039-42e8d38c87e776134eea2c1cd809455b.pdf (PDF, 109.91 kB)
