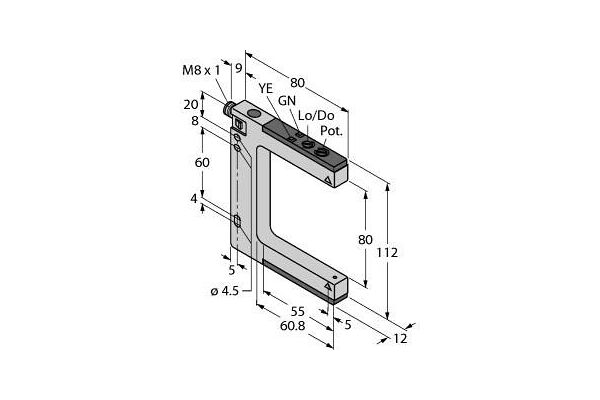

SLM80N6Q Photoelectric Sensor, Bifurcated Retroreflective Sensor

SLM80N6Q

Photoelectric Sensor, Bifurcated Retroreflective Sensor, Operating voltage 10…30 VDC, Max. range 80 mm, Male, M8 × 1, Protection class IP67, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, NPN switching output, light and dark operation

  • SKU
    0662488749842
  • Manufacturer code
    3074984
  • Rated switching distance
    80 mm
  • Max. switching distance
    80 mm
  • Type of electric connection
    Connector M8
  • Type of switching output
    NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Special construction
  • Width sensor
    12 mm
  • Height of sensor
    112 mm
  • Length of sensor
    80 mm
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 60 °C
  • Response time
    0.5 s
  • Switching frequency
    1000 Hz
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Fork width
    80 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Metal
  • Connector gender
    male
  • Type of switching output
    NPN

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-47794-b9b2819663ecf7ade2e75e04423415e5.pdf (PDF, 169.94 kB)
