SMU315LP Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

SMU315LP

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Operating voltage 24…240 VAC / 24…240 VDC, Max. range 3000 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, Sensitivity adjustable via potentiometer, Alignment indicator, Operating voltage: 24…240 VDC or 24…240 VAC, Relay output

  • SKU
    0662488525743
  • Manufacturer code
    3052574
  • Rated switching distance
    3000 mm
  • Max. switching distance
    3000 mm
  • With reflector
    false
  • Type of electric connection
    Cable
  • Type of switching output
    Relay contact
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid

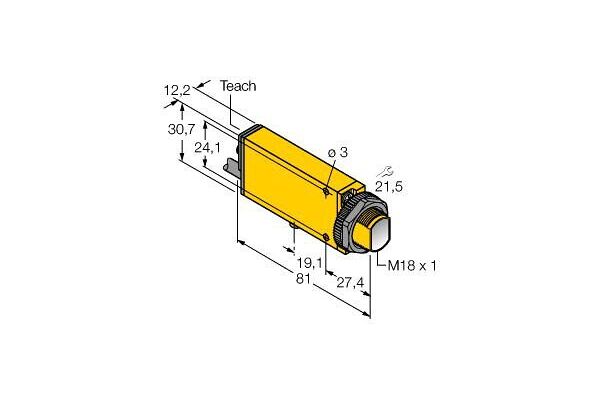

  • Width sensor
    12.3 mm
  • Height of sensor
    30.7 mm
  • Length of sensor
    81 mm
  • Material of optical surface
    Plastic
  • Min. reflector distance
    0 mm
  • Ambient temperature
    -20 - 55 °C
  • Response time
    20 s
  • Switching frequency
    25 Hz
  • Wavelength of the sensor
    650 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Diameter sensor
    18 mm
  • Housing material
    Plastic
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
