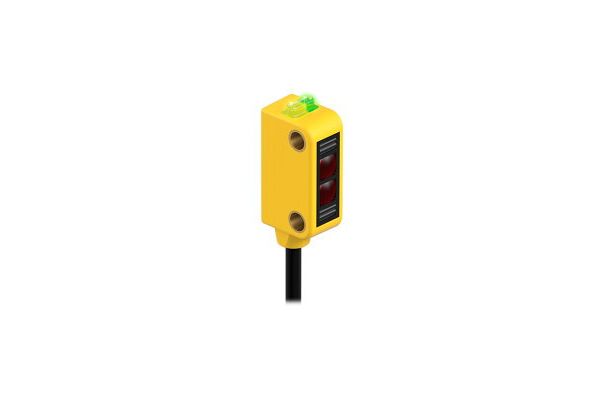

Q12AB6LVQ Photoelectric Sensor, Retroreflective Sensor, Miniature Sensor

Q12AB6LVQ

Photoelectric Sensor, Retroreflective Sensor, Miniature Sensor, Operating voltage 10…30 VDC, Max. range 1500 mm, Cable length 0.15 m, Cable, PVC, 150 mm, with M8 × 1 male end, 4-pin, Protection class IP67, LED all-round visible, Indication of insufficient excess gain, Operating voltage: 10…30 VDC, Switching output, bipolar, light operation

  • SKU
    0662488721237
  • Manufacturer code
    3072123
  • Rated switching distance
    1500 mm
  • Max. switching distance
    1500 mm
  • With reflector
    false
  • Type of electric connection
    Connector M8
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    8 mm
  • Height of sensor
    26.6 mm
  • Length of sensor
    12.4 mm
  • Sensing mode
    Light switching
    Light switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 55 °C
  • Response time
    0.7 s
  • Switching frequency
    700 Hz
  • Wavelength of the sensor
    640 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Housing material
    Plastic
  • Connector gender
    male
  • Type of switching output
    PNP/NPN
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-42353-837bcd65d3db149af3dd738b6e28da22.pdf (PDF, 488.95 kB)
