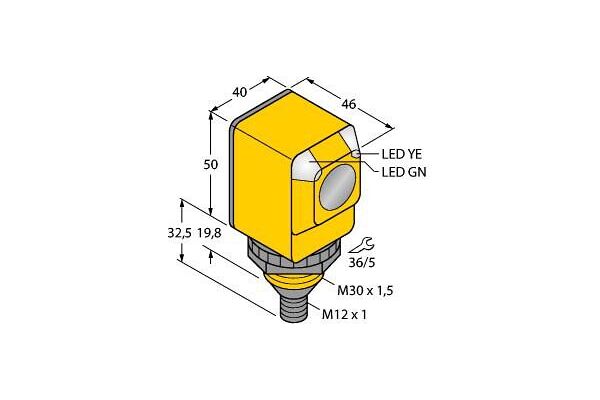

Q40SP6LPQ Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Q40SP6LPQ

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Operating voltage 10…30 VDC, Max. range 6000 mm, M12 × 1 male connector, 4-pin, Protection classes IP67/IP69K, Ambient temperature: -40 °C…+70 °C, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488333959
  • Manufacturer code
    3033395
  • Rated switching distance
    6000 mm
  • Max. switching distance
    6000 mm
  • With reflector
    false
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Programmable/configurable
  • Construction type housing
    Cuboid
  • Width sensor
    40.1 mm
  • Height of sensor
    82.5 mm
  • Length of sensor
    46 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    3 s
  • Switching frequency
    160 Hz
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Diameter sensor
    30 mm
  • Housing material
    Plastic
  • Connector gender
    male
  • Type of switching output
    PNP

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-40163-361c38abddb89c9c8d7b036ebf058270.pdf (PDF, 623.17 kB)
