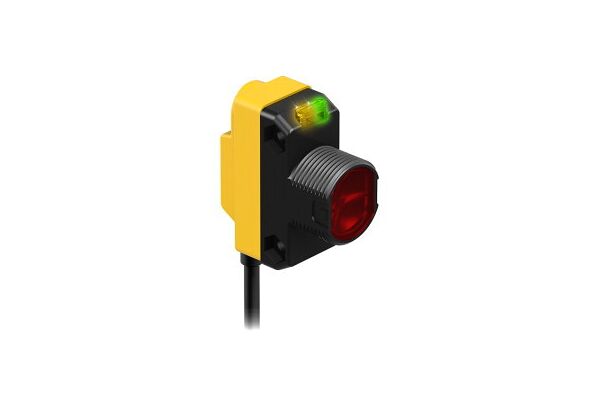

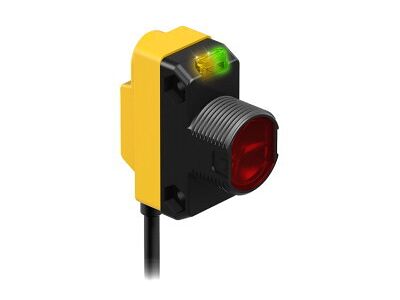

QS18VN6LV Photoelectric Sensor, Retroreflective Sensor

QS18VN6LV

Photoelectric Sensor, Retroreflective Sensor, Operating voltage 10…30 VDC, Max. range 6500 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, LED all-round visible, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, NPN switching output, changeover

  • SKU
    0662488616335
  • Manufacturer code
    3061633
  • Rated switching distance
    6500 mm
  • Max. switching distance
    6500 mm
  • With reflector
    false
  • Type of electric connection
    Cable
  • Type of switching output
    NPN
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid
  • Width sensor
    15 mm
  • Height of sensor
    35 mm
  • Length of sensor
    31 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 70 °C
  • Response time
    0.6 s
  • Switching frequency
    800 Hz
  • Wavelength of the sensor
    630 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Diameter sensor
    18 mm
  • Housing material
    Plastic
  • Type of switching output
    NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
