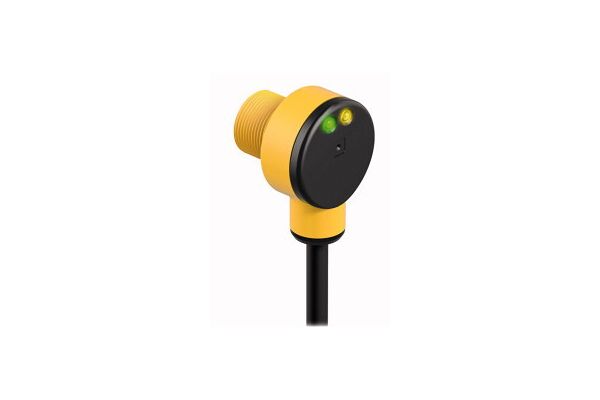

T18SP6LQP Photoelectric Sensor, Retroreflective Sensor

T18SP6LQP

Photoelectric Sensor, Retroreflective Sensor, Operating voltage 10…30 VDC, Max. range 2000 mm, Cable length 0.15 m, M12 × 1 cable with male end, 150 mm, 4-pin, Protection class IP67, Ambient temperature: -40 °C…+70 °C, Selectable light/dark operation or light operation with alarm function, Sensitivity adjustable via potentiometer, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488769376
  • Manufacturer code
    3076937
  • Rated switching distance
    2000 mm
  • Max. switching distance
    2000 mm
  • With reflector
    false
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Programmable/configurable

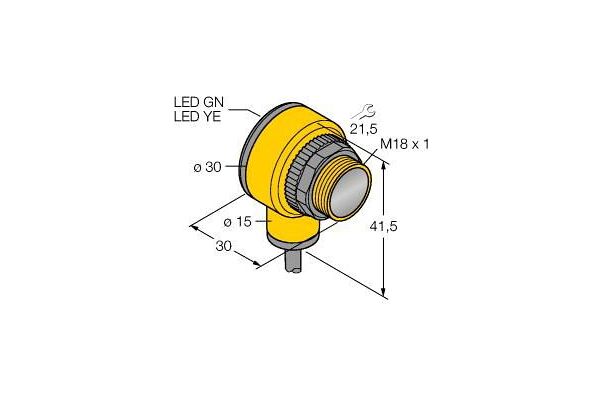

  • Width sensor
    30 mm
  • Height of sensor
    41.5 mm
  • Length of sensor
    30 mm
  • Sensing mode
    Light-/dark switching
    Light switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    3 s
  • Switching frequency
    160 Hz
  • Wavelength of the sensor
    950 nm
  • Type of light
    Infrared light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Diameter sensor
    18 mm
  • Housing material
    Plastic
  • Connector gender
    male
  • Type of switching output
    PNP
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-35710-71b3b7316d742615accccd64740f3018.pdf (PDF, 954.06 kB)
