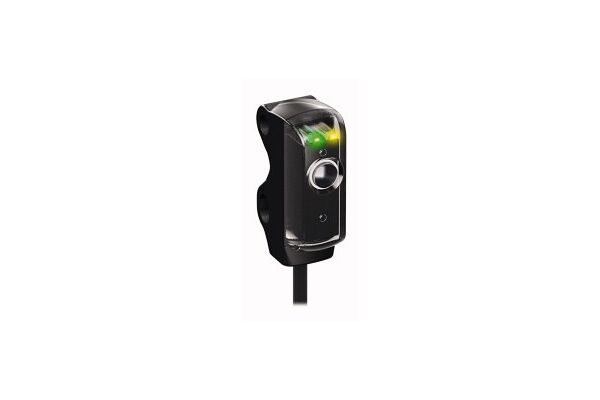

VS3RN5XLP Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Miniature S

VS3RN5XLP

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Miniature Sensor, Operating voltage 10…30 VDC, Max. range 250 mm, Cable length 2 m, Cable, 2 m, 3-wire, Coaxial optics, no blind zone, Operating voltage: 10…30 VDC, NPN switching output, dark operation

  • SKU
    0662488626211
  • Manufacturer code
    3062621
  • Rated switching distance
    250 mm
  • Max. switching distance
    250 mm
  • With reflector
    false
  • Type of electric connection
    Cable
  • Type of switching output
    NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid

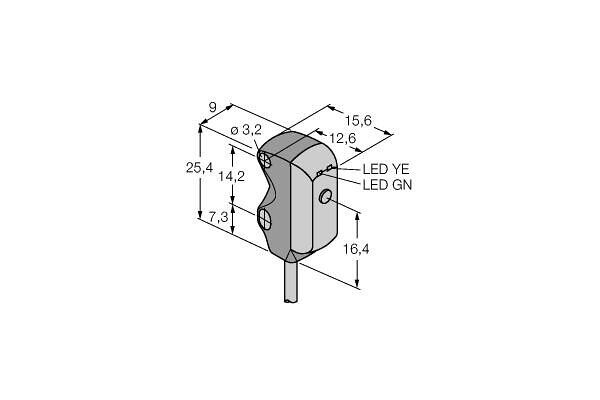

  • Width sensor
    9 mm
  • Height of sensor
    25.4 mm
  • Length of sensor
    16.6 mm
  • Sensing mode
    Dark switching
    Dark switching
  • Material of optical surface
    Glass
  • Ambient temperature
    -20 - 55 °C
  • Response time
    1 s
  • Switching frequency
    500 Hz
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Housing material
    Plastic
  • Type of switching output
    NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-30723-040ff0bc35c8645ff5378b2bbd4b4868.pdf (PDF, 675.92 kB)
