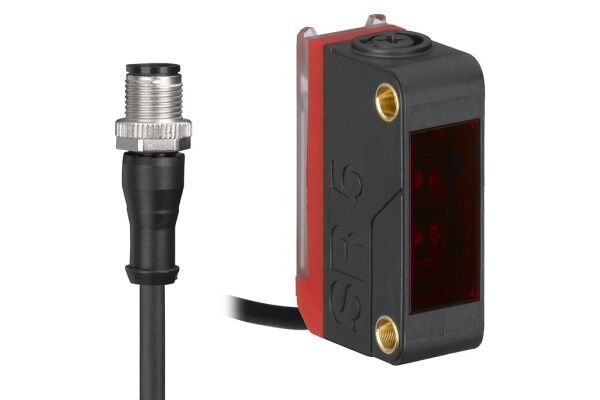

Polarized retro-reflective photoelectric sensor with a cubic design, suitable for various detection tasks.

SKU

50150050
Manufacturer code

50150050
Pre failure notice

false
With time function

false
Rated switching distance

4500 mm
Max. switching distance

4500 mm
Max. output current

50 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

1
Number of protected semiconductor outputs

0
Type of electric connection

Cable with connector
Type of switching output

PNP
Type of switch function

Other
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

11 mm
Height of sensor

32.4 mm
Length of sensor

20 mm
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
Min. reflector distance

30 mm
Ambient temperature

-40 - 60 °C
Response time

1 s
Switching frequency

500 Hz
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

None
Wavelength of the sensor

645 nm
Type of light

Polarity free red light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Setting procedure

Manual adjustment
Most suitable applications

Detection of bottle containers Detection of semi-transparent media Detection of transparent films
Supplyoltage (V)

10 ... 30
Construction type housing

Cubic
Ambient temperature, operation (°C)

-40 ... 60
Operating range limit (m)

0.03 ... 6
Operational controls

270° potentiometer

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
