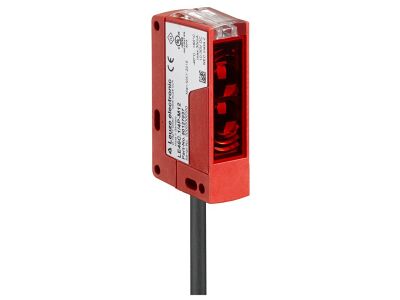

Polarized retro-reflective photoelectric sensor with heating capabilities and a broad operating range of 0.1 to 30 meters.

SKU

2110-50130468
Manufacturer code

50130468
Pre failure notice

false
With time function

false
Rated switching distance

24000 mm
Max. switching distance

24000 mm
Max. output current

2500 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of protected semiconductor outputs

0
Type of electric connection

Clamp
Type of switching output

Other
Operation agent-safety class

Safety class 2
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

31 mm
Height of sensor

104 mm
Length of sensor

55.5 mm
Sensing mode

Light-/dark switching
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
Min. reflector distance

100 mm
Ambient temperature

-40 - 60 °C
Response time

20 s
Switching frequency

25 Hz
Voltage type

DC
AC/DC
With monitoring function downstream switching devices

false
Laser protection class

None
Wavelength of the sensor

630 nm
Type of light

Polarity free red light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Rated control supply voltage AC 50 Hz

20 - 250 V
Rated control supply voltage AC 60 Hz

20 - 250 V
Most suitable applications

Environments with varying temperatures Situations requiring robust protection and reliability
Special version

Heating
Supplyoltage (V)

20 ... 250
Construction type housing

Cubic
Ambient temperature, operation (°C)

-40 ... 60
Operating range limit (m)

0.1 ... 30
