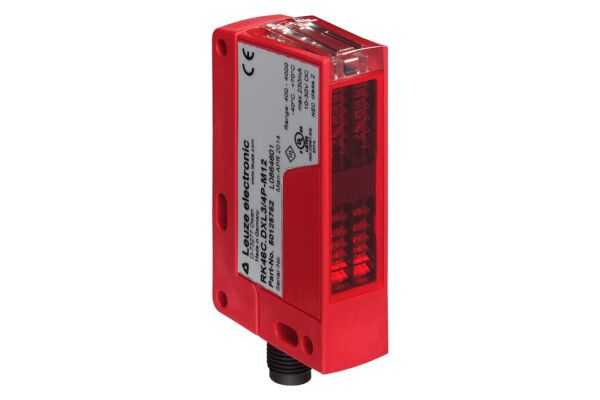

Unpolarized retro-reflective photoelectric sensor with extra long light spot (XL) featuring a cubic design and robust plastic housing.

SKU

2110-50126764
Manufacturer code

50126764
Pre failure notice

false
With time function

false
Rated switching distance

4000 mm
Max. switching distance

4000 mm
Max. output current

100 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of protected semiconductor outputs

0
Type of electric connection

Connector M12
Type of switching output

NPN
Type of switch function

Other
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

20.5 mm
Height of sensor

76.3 mm
Length of sensor

44 mm
Sensing mode

Light switching
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
Min. reflector distance

400 mm
Ambient temperature

-40 - 60 °C
Response time

2 s
Switching frequency

250 Hz
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

None
Wavelength of the sensor

620 nm
Type of light

Polarity free red light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Setting procedure

Teach-In
Most suitable applications

Detection of stretch-wrapped objects Detection of irregular objects on conveyor belt Detection of objects with openings Detection of small parts Detection of transparent objects
Special version

Extra long light spot (XL)
Supplyoltage (V)

10 ... 30
Construction type housing

Cubic
Ambient temperature, operation (°C)

-40 ... 60
Operating range limit (m)

0.4 ... 5.2
Operational controls

Teach button

Manufacturer Leuze
