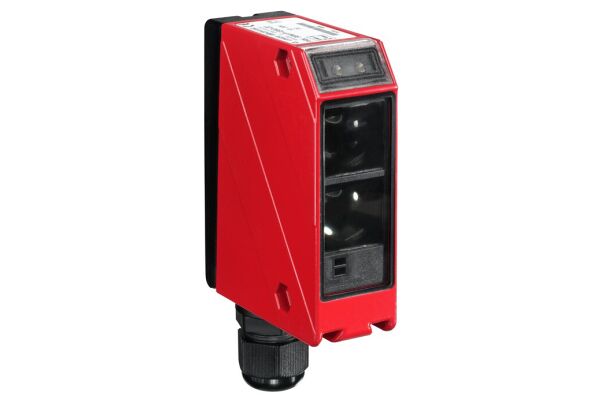

Polarized retro-reflective photoelectric sensor with a time function, ideal for detecting various transparent and stretch-wrapped objects.

SKU

2110-50080470
Manufacturer code

50080470
Pre failure notice

false
With time function

false
Rated switching distance

1500 mm
Max. switching distance

1500 mm
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

1
Number of protected semiconductor outputs

0
Type of electric connection

Clamp
Type of switching output

Other
Operation agent-safety class

Safety class 2
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

30 mm
Height of sensor

90 mm
Length of sensor

70 mm
Sensing mode

Light switching
Material of optical surface

Glass
Housing material

Metal
Metal
Metal
Metal
Min. reflector distance

0 mm
Ambient temperature

-40 - 55 °C
Response time

0 s
Switching frequency

20 Hz
Voltage type

DC
AC/DC
With monitoring function downstream switching devices

false
Laser protection class

None
Wavelength of the sensor

0 nm
Type of light

Polarity free red light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Setting procedure

Manual adjustment
Rated control supply voltage AC 50 Hz

20 - 230 V
Rated control supply voltage AC 60 Hz

20 - 230 V
Most suitable applications

Detection of stretch-wrapped objects Detection of highly transparent bottles Detection of highly transparent films and glass panes
Special version

Time function
Supplyoltage (V)

20 ... 230
Construction type housing

Cubic
Ambient temperature, operation (°C)

-40 ... 55
Operating range limit (m)

0 ... 1.85
Operational controls

Multiturn potentiometer

Manufacturer Leuze
