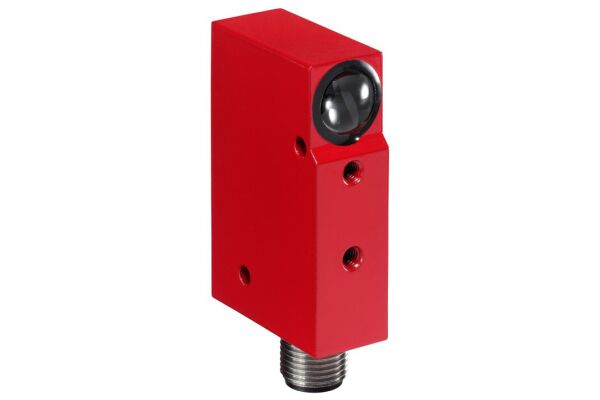

Polarized retro-reflective photoelectric sensor with autocollimation and tracking function, designed for detecting highly transparent materials.

SKU

2110-50033552
Manufacturer code

50033552
Pre failure notice

false
With time function

false
Rated switching distance

3000 mm
Max. switching distance

3000 mm
Max. output current

100 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of protected semiconductor outputs

0
Type of electric connection

Connector M12
Type of switching output

PNP
Type of switch function

Other
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

15 mm
Height of sensor

50 mm
Length of sensor

33 mm
Sensing mode

Dark switching
Material of optical surface

Glass
Housing material

Metal
Metal
Metal
Metal
Min. reflector distance

0 mm
Ambient temperature

-25 - 55 °C
Response time

0.5 s
Switching frequency

1000 Hz
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

None
Wavelength of the sensor

660 nm
Type of light

Polarity free red light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Setting procedure

Manual adjustment
Most suitable applications

Detection of highly transparent bottles Detection of highly transparent films and glass panes
Special version

Warning output
Autocollimation
Tracking function
Supplyoltage (V)

10 ... 30
Construction type housing

Cubic
Ambient temperature, operation (°C)

-25 ... 55
Operating range limit (m)

0 ... 4
Operational controls

Step switch

Manufacturer Leuze
