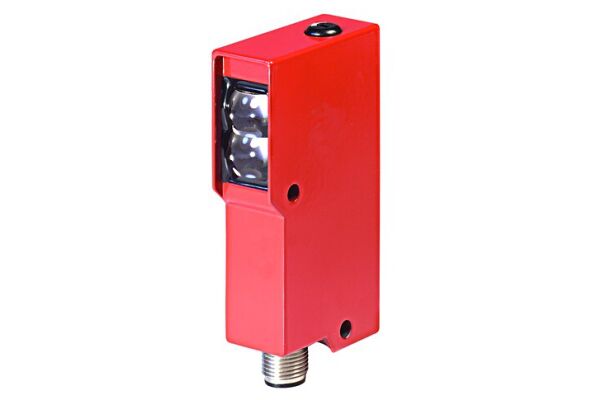

Polarized retro-reflective photoelectric sensor with a warning output and versatile switching capabilities.

SKU

2110-50018778
Manufacturer code

50018778
Pre failure notice

false
With time function

false
Rated switching distance

8500 mm
Max. switching distance

8500 mm
Max. output current

0 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of protected semiconductor outputs

0
Type of electric connection

Connector M12
Type of switching output

PNP
Type of switch function

Other
Operation agent-safety class

Safety class 2
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

20 mm
Height of sensor

80 mm
Length of sensor

42.2 mm
Sensing mode

Light-/dark switching
Material of optical surface

Glass
Housing material

Metal
Metal
Metal
Metal
Min. reflector distance

200 mm
Ambient temperature

-20 - 60 °C
Response time

1 s
Switching frequency

500 Hz
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

None
Wavelength of the sensor

660 nm
Type of light

Polarity free red light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Most suitable applications

Detecting objects within a range of 0.2 to 12.5 meters.
Special version

Warning output
Supplyoltage (V)

10 ... 30
Construction type housing

Cubic
Ambient temperature, operation (°C)

-20 ... 60
Operating range limit (m)

0.2 ... 12.5
