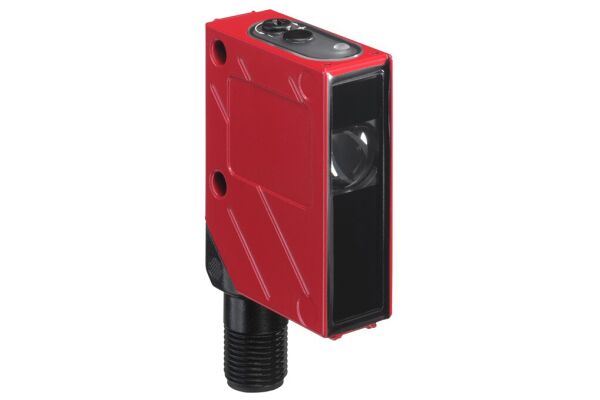

LRT 8/24.10-150-S12 Luminescence sensor

LRT 8/24.10-150-S12
A luminescence sensor with autocollimation and a range of up to 0.5 meters, featuring a blue LED light source and dual digital switching outputs.
  • SKU
    2110-50119033
  • Manufacturer code
    50119033
  • Lamp type
    UV LED
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • Type of electric connection
    Connector M12
  • Number of semiconductor outputs with signalling function
    2
  • Number of contact energized outputs with signalling function
    0
  • Type of switching output
    PNP
  • Type of switch function
    Other
  • With blanking function
    false
  • Operation agent-safety class
    Safety class 2
  • Width sensor
    15 mm
  • Height of sensor
    48 mm
  • Length of sensor
    38 mm
  • Setting procedure
    Other
  • Type of frequency band of the receiving spectrum
    Blue
  • Construction type housing
    Cuboid
  • Type of light
    Blue light
  • Light dot
    7 mm²
  • With fibre optics connection
    false
  • Nominal operating distance
    500 mm
  • Switching frequency
    1500 Hz
  • Degree of protection (IP)
    IP67
  • Voltage type
    DC
    DC
    DC
    DC
  • Ambient temperature
    -20 - 60 °C
  • With exchange lens
    false
  • Material of optical surface
    Glass
  • Housing material
    Other
    Metal
  • With time function
    false
  • Special version
    Autocollimation
  • Supplyoltage (V)
    10 ... 30
  • Manufacturer Leuze

Product attachments

DS_LRT8__en_50118345 (LINK)
