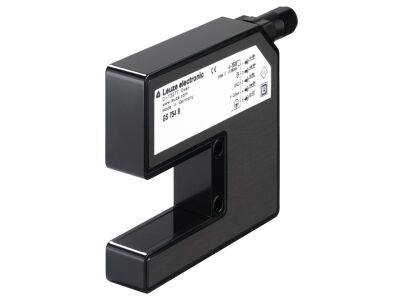

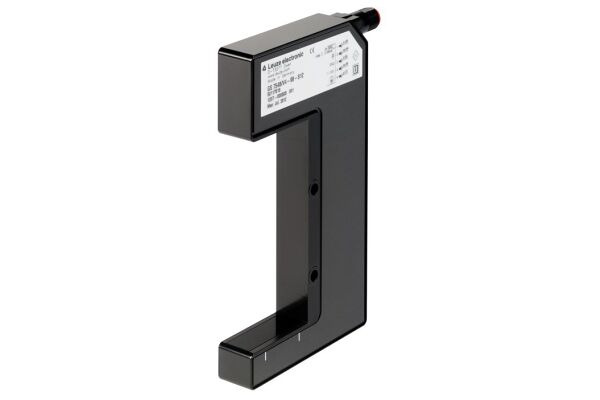

GS 754B/D24-98-S12 Fork photoelectric sensor

GS 754B/D24-98-S12
Fork photoelectric sensor with a teach input and an RS 232 interface.
  • SKU
    2110-50119710
  • Manufacturer code
    50119710
  • With time function
    false
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Number of contact energized outputs with signalling function
    0
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Type of electric connection
    Connector M12
  • Operation agent-safety class
    Safety class 3
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Material of optical surface
    Plastic
  • Housing material
    Metal
  • Voltage type
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • Pre failure notice
    false
  • Type of light
    Infrared light
  • Material of cable sheath
    Other
  • With restart blockage
    false
  • Degree of protection (IP)
    IP67
  • Suitable for safety functions
    false
  • Fork depth
    42
  • Fork width
    98
  • Rated switching distance
    25
  • Max. switching distance
    98
  • Width sensor
    20.4
  • Height of sensor
    157
  • Length of sensor
    91
  • Min. reflector distance
    98
  • Transmission range of the safety field
    0.098
  • Ambient temperature
    -20 - 50
  • Rated control supply voltage DC
    10 - 30
  • Special version
    Teach input
  • Supplyoltage (V)
    10 ... 30
  • Voltage type
    DC
    DC
  • Mouth width (mm)
    98
  • Mouth depth (mm)
    42
  • Measurement field length (mm)
    25
  • Interface
    RS 232
  • Manufacturer Leuze

Product attachments

DS_GS-754B-D24-98-S12_eng_50119710 (LINK)
