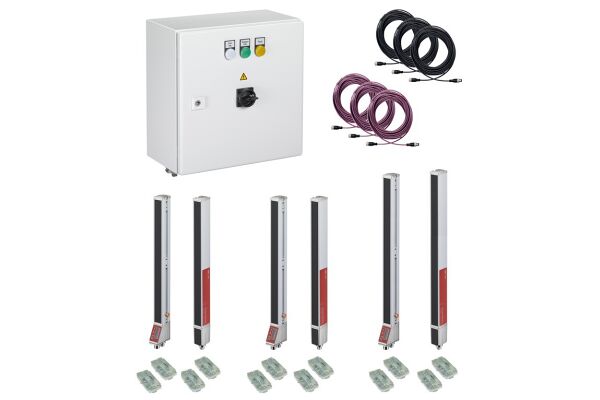

A contour measurement system with a versatile operating range and multiple measurement field lengths. It features various switching inputs and outputs, as well as advanced connectivity options.

SKU

2110-50142164
Manufacturer code

50142164
Operation agent-safety class

Safety class 0
Explosion safety category for gas

None
Explosion safety category for dust

None
Transmission range of the safety field

4.5 m
Voltage type

Other
AC
With monitoring function downstream switching devices

false
With restart blockage

false
Degree of protection (IP)

Other
Suitable for safety functions

false
Ambient temperature

0 - 45 °C
Fade-out possible

false
Type of switching output of the OSSD

Other
Cascadable

false
With muting function

false
Override possible

false
Resolution of the light curtain

5 mm
Reduced resolution

false
Safety field height

800 mm
With beam coding

true
Clock control possible

false
Degree of protection (NEMA)

Other
Number of semiconductor outputs with signalling function

4
Rated control supply voltage AC 50 Hz

100 - 263 V
Rated control supply voltage AC 60 Hz

100 - 263 V
Most suitable applications

Contour measurement tasks
Supplyoltage (V)

100 ... 263
Interface

EtherNet TCP/IPPROFINET
Measurement field length 1 (mm)

800
Measurement field length 2 (mm)

560
Measurement field length 3 (mm)

640
Operating range (m)

0.1 ... 4.5

Manufacturer Leuze
