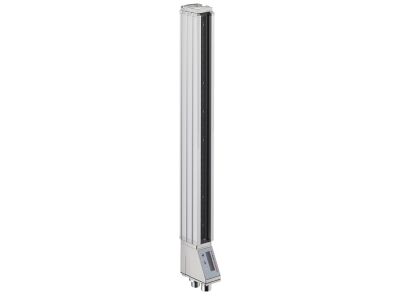

CML720i-T20-1570.A-M12-EX

Light curtain transmitter with various scanning options and explosion protection.

SKU

2110-50126411
Manufacturer code

50126411
Type of electric connection

Connector M12
Operation agent-safety class

Safety class 3
Explosion safety category for gas

ATEX gas-ex-protection, Cat. 2G
Explosion safety category for dust

ATEX dust-ex-protection, Cat. 2D
Width sensor

30.7 mm
Height of sensor

40.3 mm
Length of sensor

1623 mm
Transmission range of the safety field

7 m
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With restart blockage

false
Degree of protection (IP)

IP65
Suitable for safety functions

false
Ambient temperature

-30 - 60 °C
Rated control supply voltage DC

18 - 30 V
Fade-out possible

false
Type of switching output of the OSSD

Other
Detection capability for test bodies

30 mm
Cascadable

false
Scope of delivery of the one-way system

Transmitter
With muting function

false
Override possible

false
Resolution of the light curtain

30 mm
Reduced resolution

false
Safety field height

1570 mm
With beam coding

true
Clock control possible

false
Wavelength of the sensor

940 nm
Degree of protection (NEMA)

Other
Most suitable applications

Industrial safety systems Hazardous environments
Special version

Diagonal-beam scanning
Crossed-beam scanning
Parallel-beam scanning
Ex-protected
Supplyoltage (V)

18 ... 30
Beam spacing (mm)

20
Ex device group

II
Operating range (m)

0.3 ... 7

Manufacturer Leuze

Product attachments

DS_CML720i-T20-1570-A-M12-EX_eng_50126411 (LINK)
