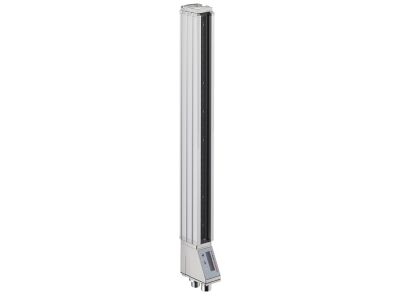

CML720i-T20-770.A-M12-EX Light curtain transmitter

CML720i-T20-770.A-M12-EX
Light curtain transmitter with various scanning modes and ex-protection features.
  • SKU
    2110-50126406
  • Manufacturer code
    50126406
  • Type of electric connection
    Connector M12
  • Operation agent-safety class
    Safety class 3
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 2G
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 2D
  • Width sensor
    30.7 mm
  • Height of sensor
    40.3 mm
  • Length of sensor
    823 mm
  • Transmission range of the safety field
    7 m
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Degree of protection (IP)
    IP65
  • Suitable for safety functions
    false
  • Ambient temperature
    -30 - 60 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Fade-out possible
    false
  • Type of switching output of the OSSD
    Other
  • Detection capability for test bodies
    30 mm
  • Cascadable
    false
  • Scope of delivery of the one-way system
    Transmitter
  • With muting function
    false
  • Override possible
    false
  • Resolution of the light curtain
    30 mm
  • Reduced resolution
    false
  • Safety field height
    770 mm
  • With beam coding
    true
  • Clock control possible
    false
  • Wavelength of the sensor
    940 nm
  • Degree of protection (NEMA)
    Other
  • Special version
    Diagonal-beam scanning
    Crossed-beam scanning
    Parallel-beam scanning
    Ex-protected
  • Supplyoltage (V)
    18 ... 30
  • Beam spacing (mm)
    20
  • Ex device group
    II
  • Operating range (m)
    0.3 ... 7
  • Manufacturer Leuze

Product attachments

DS_CML720i-T20-770-A-M12-EX_eng_50126406 (LINK)
