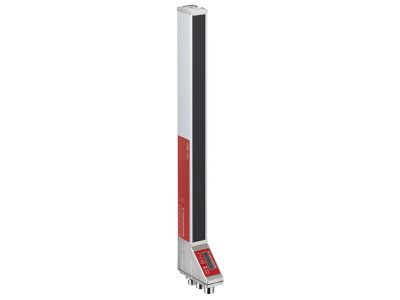

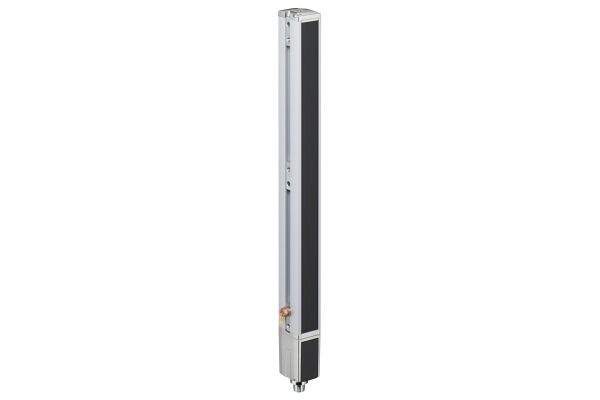

Light curtain transmitter with multiple scanning modes and a substantial operating range.

SKU

2110-50118642
Manufacturer code

50118642
Type of electric connection

Connector M12
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Width sensor

29 mm
Height of sensor

35.4 mm
Length of sensor

2315 mm
Transmission range of the safety field

9.5 m
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With restart blockage

false
Degree of protection (IP)

IP65
Suitable for safety functions

false
Ambient temperature

-30 - 60 °C
Rated control supply voltage DC

18 - 30 V
Fade-out possible

false
Type of switching output of the OSSD

Other
Detection capability for test bodies

30 mm
Cascadable

false
Scope of delivery of the one-way system

Transmitter
With muting function

false
Override possible

false
Resolution of the light curtain

30 mm
Reduced resolution

false
Safety field height

2230 mm
With beam coding

true
Clock control possible

false
Wavelength of the sensor

940 nm
Degree of protection (NEMA)

Other
Special version

Diagonal-beam scanning
Crossed-beam scanning
Parallel-beam scanning
Supplyoltage (V)

18 ... 30
Beam spacing (mm)

20
Operating range (m)

0.3 ... 9.5
