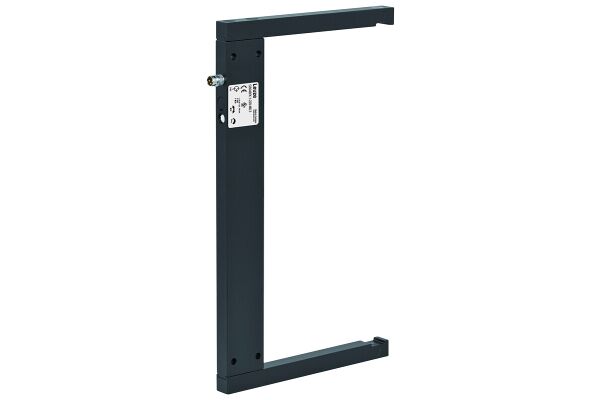

Fork photoelectric sensors use optical principles with a red LED light source. They are compact and versatile, suitable for various applications requiring precise object detection.

SKU

2110-50146172
Manufacturer code

50146172
Suitable for safety functions

false
Type of switching output

PNP
Type of electric connection

Connector M8
Number of semiconductor outputs with signalling function

1
Number of contact energized outputs with signalling function

0
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Construction type housing

Cuboid
Voltage type

DC
DC
With monitoring function downstream switching devices

false
Housing material

Metal
Explosion safety category for gas

None
Explosion safety category for dust

None
Setting procedure

Manual adjustment
With time function

false
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Operation agent-safety class

Safety class 3
Sensing mode

Light-/dark switching
Material of optical surface

Glass
Pre failure notice

false
Type of light

Polarity free red light
Material of cable sheath

Other
With restart blockage

false
Degree of protection (IP)

IP67
Fork depth

110
Fork width

220
Rated switching distance

220
Max. switching distance

220
Max. output current

100
Width sensor

12
Height of sensor

244
Length of sensor

140
Min. reflector distance

220
Response time

0.1
Transmission range of the safety field

0.22
Switching frequency

5000
Wavelength of the sensor

660
Ambient temperature

-25 - 60
Rated control supply voltage DC

10 - 30
Housing material

Diecast zinc
Supplyoltage (V)

10 ... 30
Voltage type

DC
DC
Switching frequency (Hz)

5000
Mouth width (mm)

220
Mouth depth (mm)

110
Most suitable applications

Ideal for industrial automation and material handling systems where accurate detection of objects is necessary.
