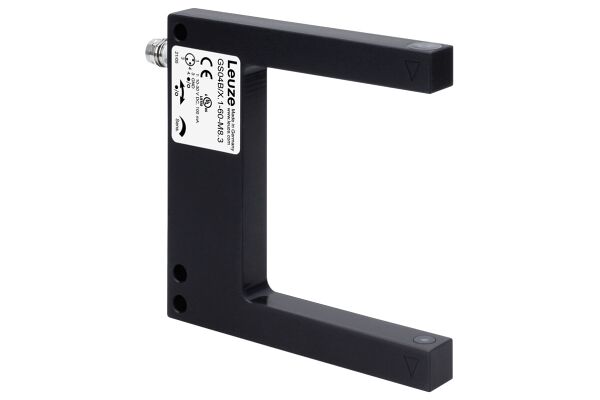

GS04B/P.1-60-M8.3 Fork photoelectric sensor

GS04B/P.1-60-M8.3
Fork photoelectric sensor with optical principle and red LED light source. Features a PNP transistor switching output, light/dark reversible functionality, and a connector for easy installation.
  • SKU
    2110-50146165
  • Manufacturer code
    50146165
  • Suitable for safety functions
    false
  • Type of switching output
    PNP
  • Type of electric connection
    Connector M8
  • Number of semiconductor outputs with signalling function
    1
  • Number of contact energized outputs with signalling function
    0
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Construction type housing
    Cuboid
  • Voltage type
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • Housing material
    Metal
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Setting procedure
    Manual adjustment
  • With time function
    false
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Operation agent-safety class
    Safety class 3
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Glass
  • Pre failure notice
    false
  • Type of light
    Polarity free red light
  • Material of cable sheath
    Other
  • With restart blockage
    false
  • Degree of protection (IP)
    IP67
  • Fork depth
    55
  • Fork width
    60
  • Rated switching distance
    60
  • Max. switching distance
    60
  • Max. output current
    100
  • Width sensor
    10
  • Height of sensor
    80
  • Length of sensor
    80
  • Min. reflector distance
    60
  • Response time
    0.1
  • Transmission range of the safety field
    0.06
  • Switching frequency
    5000
  • Wavelength of the sensor
    660
  • Ambient temperature
    -25 - 60
  • Rated control supply voltage DC
    10 - 30
  • Housing material
    Aluminum
  • Supplyoltage (V)
    10 ... 30
  • Voltage type
    DC
    DC
  • Switching frequency (Hz)
    5000
  • Mouth width (mm)
    60
  • Mouth depth (mm)
    55
  • Most suitable applications
    Suitable for precise object detection and positioning tasks.
  • Manufacturer Leuze

Product attachments

DS_GS04B-P-1-60-M8-3_eng_50146165 (LINK)
