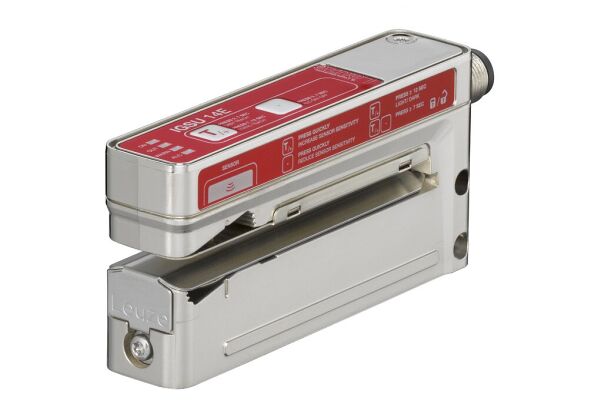

IGSU14E/LWT.3-M12 Ultrasonic fork sensor

IGSU14E/LWT.3-M12
Ultrasonic fork sensor designed for detecting both transparent and non-transparent labels. It features easyTeach and tracking functions, along with manual fine-tuning capabilities.
  • SKU
    2110-50142870
  • Manufacturer code
    50142870
  • Width sensor
    22 mm
  • Height of sensor
    46.9 mm
  • Length of sensor
    96 mm
  • Type of switch function
    Anticoincidence
  • Type of switching output
    PNP/NPN
  • Type of electric connection
    Connector M12
  • Construction type housing
    Special construction
  • Supply voltage
    18 - 18 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Switching frequency
    2000 Hz
  • Housing material
    Aluminium
    Diecast zinc
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Setting procedure
    Manual adjustment
  • No-load current
    0 mA
  • Max. output current
    100 A
  • Ambient temperature
    60 - 60 °C
  • Synchronisation possible
    false
  • Most suitable applications
    Detection of non-transparent labels Detection of transparent labels
  • Supplyoltage (V)
    18 ... 30
  • Switching frequency (Hz)
    2000
  • Operational controls
    Control buttons
  • Plug outlet
    Horizontal (parallel to belt movement)
  • Special version
    Teach input
    Warning output
    easyTeach function
    ALC-Funktion (Tracking)
    Manual fine tuning of the switching threshold
  • Interface
    IO-Link
  • Manufacturer Leuze

Product attachments

DS_IGSU14E-LWT-3-M12_eng_50142870 (LINK)
