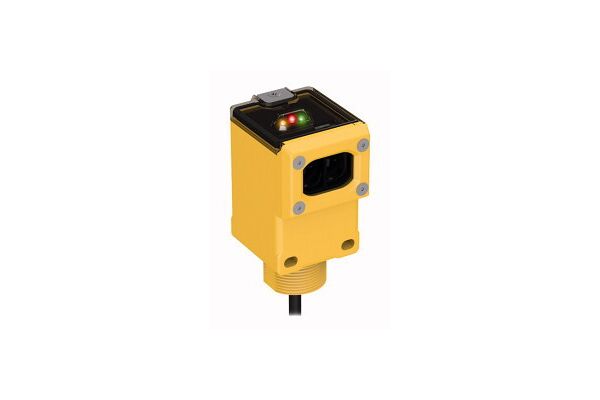

Q45AD9FV Photoelectric Sensor, Photoelectric Sensor for Glass Fibers

Q45AD9FV

Photoelectric Sensor, Photoelectric Sensor for Glass Fibers, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, Sensitivity adjusted via potentiometer, Operating voltage: 5…15 VDC, NAMUR output: dark = 2.1 mA, Acc. to EN 60947‐5‐6 (NAMUR)

  • SKU
    0662488582661
  • Manufacturer code
    3058266
  • Type of electric connection
    Cable
  • Degree of protection (IP)
    IP67
  • Type of switching output
    NAMUR
  • Construction type housing
    Cuboid
  • Type of light
    Infrared light
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Type of switch function
    Other
  • Ambient temperature
    -40 - 70 °C
  • Housing material
    Plastic

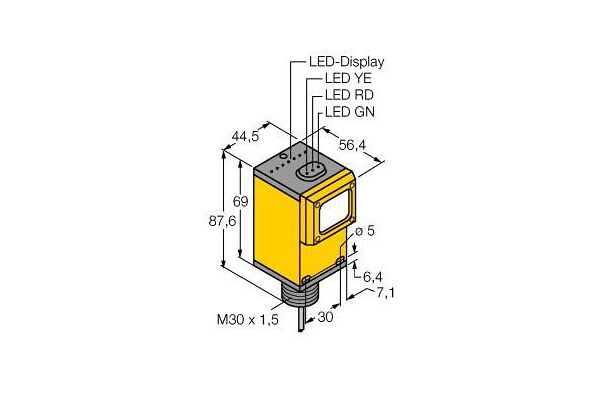

  • Width amplifier
    44.5
  • Height amplifier
    87.6
  • Length amplifier
    56.4
  • No-load current
    2.1
  • Cable length (m)
    2
  • Switching frequency
    100

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-37123-7d96c7d3489119826b48cfa043c2da95.pdf (PDF, 1020.81 kB)
