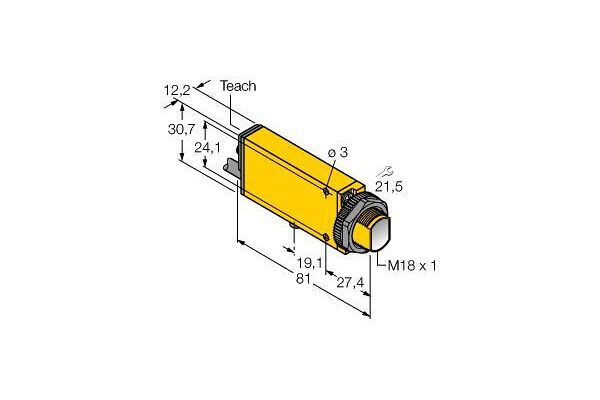

SMU315FQDP Photoelectric Sensor, Photoelectric Sensor for Glass Fibers

SMU315FQDP

Photoelectric Sensor, Photoelectric Sensor for Glass Fibers, Operating voltage 24…240 VAC / 24…240 VDC, Cable length 0.15 m, Cable, PVC, 2 m, Protection class IP67, Sensitivity adjusted via potentiometer, Alignment indicator, Operating voltage: 24…240 VDC or 24…240 VAC, Relay output

  • SKU
    0662488679309
  • Manufacturer code
    3067930
  • Type of electric connection
    Connector 1/2 inch
  • Degree of protection (IP)
    IP67
  • Type of switching output
    Relay contact
  • Construction type housing
    Cuboid
  • Type of light
    Infrared light
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Type of switch function
    Change-over contact (NO/NC)
  • Ambient temperature
    -20 - 55 °C
  • Housing material
    Plastic
  • Width amplifier
    12.3
  • Height amplifier
    30.7
  • Length amplifier
    81
  • Cable length (m)
    2
  • Switching frequency
    25

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-32081-f2e4f8db7fd9ffc394154ad5e03d5861.pdf (PDF, 682.86 kB)
