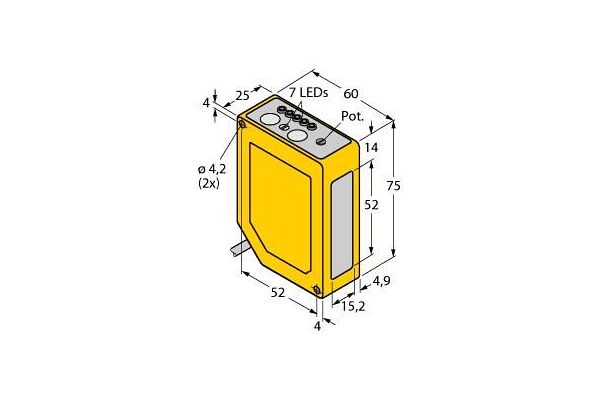

Q60VR3LAF1400QPMA10 Photoelectric Sensor, Laser Sensor, Diffuse Mode, with Adjustable Background Sup

Q60VR3LAF1400QPMA10

Photoelectric Sensor, Laser Sensor, Diffuse Mode, with Adjustable Background Suppression, Operating voltage 24…250 VAC / 12…250 VDC, Max. range 1400 mm, Cable length 0.15 m, Cable with male end 7/8”, 5-pin, PUR, 150 mm, Protection class IP67, 5-segement LED display, Signal indication, Keylock, Switch ON/OFF delay, adjustable between 8…16 ms, Operating voltage: 12…250 VDC or 24…250 VAC, Relay output

  • SKU
    0662488734497
  • Manufacturer code
    3073449
  • Type of electric connection
    Connector 7/8 inch
  • Type of switching output
    Relay contact
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid
  • Width sensor
    25 mm
  • Height of sensor
    75 mm
  • Length of sensor
    60 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -10 - 45 °C
  • Response time
    15 s
  • Switching frequency
    33 Hz
  • Laser protection class
    Class 1
  • Wavelength of the sensor
    650 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyurethane (PUR)
  • Rated switching distance
    1400 mm
  • Max. switching distance
    1400 mm
  • Adjustment range
    200 - 1400 mm
  • Housing material
    Plastic
  • Connector gender
    male
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-54876-66466e4977dd6a6fdba17a3eb7065d33.pdf (PDF, 540.35 kB)
