LT3BDQ Photoelectric Sensor, Diffuse-Mode Laser Sensor (Runtime Measurement), With Swit

LT3BDQ

Photoelectric Sensor, Diffuse-Mode Laser Sensor (Runtime Measurement), With Switching Outputs, Operating voltage 12…24 VDC, Max. range 5000 mm, Male M12 × 1, 8-pin, Indication of signal intensity, Protection class IP67, Measuring range (distance to white object): 5 m, 3 response times adjustable for switching output, Operating voltage: 12…24 VDC, Two independently adjustable switching ranges

  • SKU
    0662488655167
  • Manufacturer code
    3065516
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid

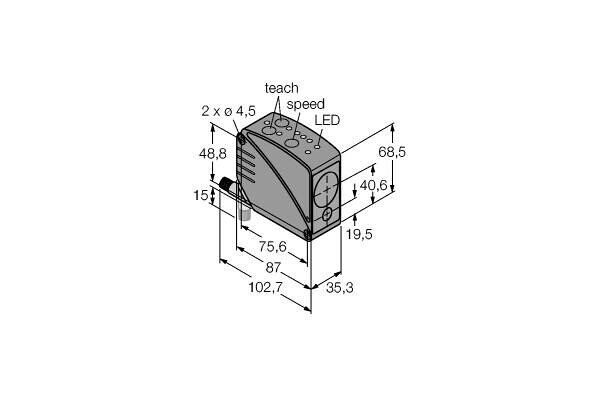

  • Width sensor
    35.3 mm
  • Height of sensor
    68.5 mm
  • Length of sensor
    87 mm
  • Material of optical surface
    Plastic
  • Switching frequency
    1000 Hz
  • Laser protection class
    Class 2
  • Type of light
    Polarity free red light
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Teach-In
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Supply voltage
    12 - 24
  • Housing material
    Plastic
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-52651-909feb37a5b71fbda66b64967d88906f.pdf (PDF, 897.15 kB)
