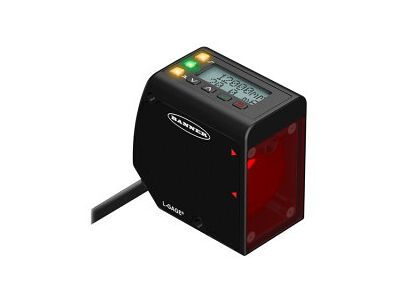

LTF12IC2LD Photoelectric Sensor, Diffuse-Mode Laser Sensor (Runtime Measurement), With Anal

LTF12IC2LD

Photoelectric Sensor, Diffuse-Mode Laser Sensor (Runtime Measurement), With Analog Output, Operating voltage 12…30 VDC, Max. range 12000 mm, Cable length 2 m, 2-line, 8-segment display, Cable, PVC, 2 m, Range: 0.05…12 m, Laser class 2, red, 660 nm, acc. to IEC 60825-1:2007, Resolution: 0.3…3 mm, Operating voltage: 12…30 VDC, PNP/NPN-switching output, switchable, Analog output: 4…20 mA

  • SKU
    0662488948511
  • Manufacturer code
    3094851
  • Type of electric connection
    Cable
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    26 mm
  • Height of sensor
    56 mm
  • Length of sensor
    77 mm
  • Material of optical surface
    Plastic
  • Switching frequency
    250 Hz
  • Laser protection class
    Class 2
  • Type of light
    Polarity free red light
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Type of analogy output
    4 mA ... 20 mA
  • Supply voltage
    12 - 30
  • Housing material
    Other
  • Type of switching output
    PNP/NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-51428-0a57238b158e2d5d4240a420686dab6f.pdf (PDF, 506.48 kB)
