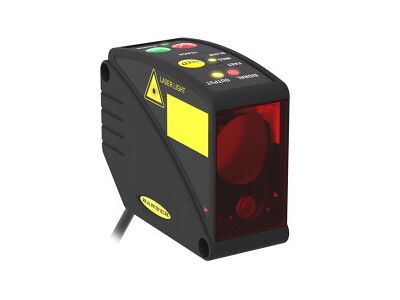

LT3NI W/30 Photoelectric Sensor, Diffuse-Mode Laser Sensor (Runtime Measurement), With Swit

LT3NI W/30

Photoelectric Sensor, Diffuse-Mode Laser Sensor (Runtime Measurement), With Switching and Analog Output, Operating voltage 12…24 VDC, Max. range 5000 mm, Cable length 9 m, Cable, 7-wire, 9 m, Indication of signal intensity, Protection class IP67, Measuring range (distance to white object): 5 m, 3 response times adjustable for switching output, Operating voltage: 12…24 VDC, Hysteresis and measuring range independently adjustable, Edge of the analog output invertible

  • SKU
    0662488655129
  • Manufacturer code
    3065512
  • Type of electric connection
    Cable
  • Type of switching output
    NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid

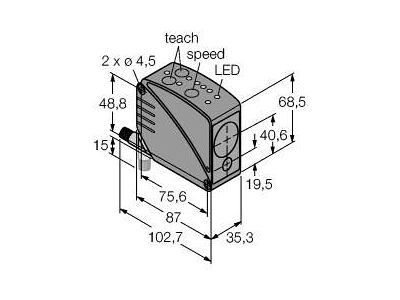

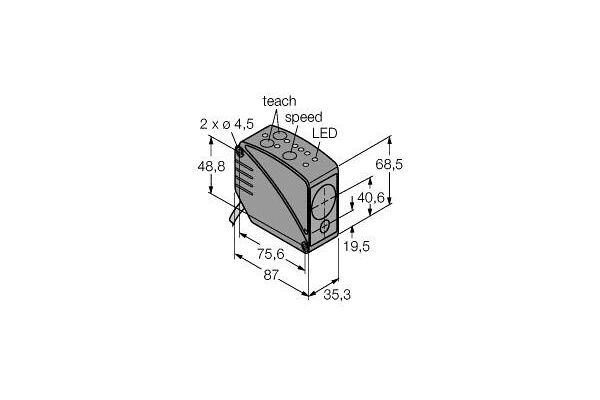

  • Width sensor
    35.3 mm
  • Height of sensor
    68.5 mm
  • Length of sensor
    87 mm
  • Material of optical surface
    Plastic
  • Switching frequency
    1000 Hz
  • Laser protection class
    Class 2
  • Type of light
    Polarity free red light
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Teach-In
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Type of analogy output
    4 mA ... 20 mA
  • Supply voltage
    12 - 24
  • Housing material
    Plastic
  • Cable length (m)
    9

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-50802-57edf06d28efa284f3634efc16068592.pdf (PDF, 878.01 kB)
