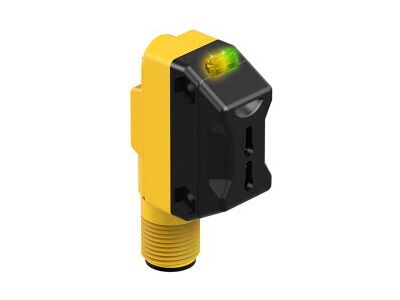

QS18VP6DLQ7 Photoelectric Sensor, Diffuse Mode Sensor

QS18VP6DLQ7

Photoelectric Sensor, Diffuse Mode Sensor, Operating voltage 10…30 VDC, Max. range 600 mm, Male connector, M8 × 1, 4-pin, Protection class IP67, LED all-round visible, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488005696
  • Manufacturer code
    3800771
  • Type of electric connection
    Connector M8
  • Type of switching output
    PNP
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid
  • Width sensor
    15 mm
  • Height of sensor
    41.5 mm
  • Length of sensor
    21.1 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 70 °C
  • Response time
    0.85 s
  • Switching frequency
    800 Hz
  • Wavelength of the sensor
    940 nm
  • Type of light
    Infrared light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Max. switching distance
    600 mm
  • Diameter sensor
    18 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
