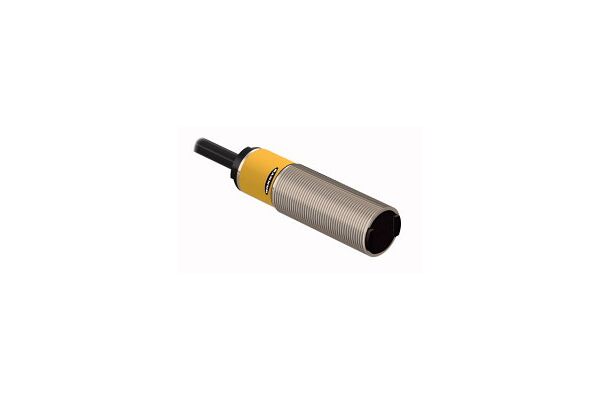

M18SP6DL Photoelectric Sensor, Diffuse Mode Sensor

M18SP6DL

Photoelectric Sensor, Diffuse Mode Sensor, Operating voltage 10…30 VDC, Max. range 300 mm, Cable length 2 m, Cable, 2 m, Protection class IP67, Ambient temperature: -40…+70 °C, Metal housing, Connecting cable, 2 m, Stainless steel housing, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488486662
  • Manufacturer code
    3048666
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Programmable/configurable

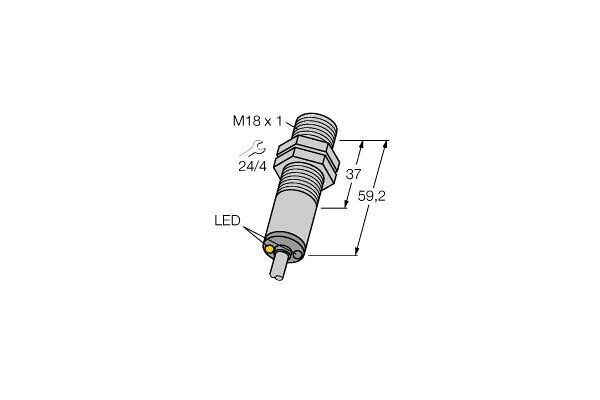

  • Length of sensor
    59.2 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    3 s
  • Switching frequency
    160 Hz
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • Suitable for safety functions
    false
  • Setting procedure
    Other
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Max. switching distance
    300 mm
  • Diameter sensor
    18 mm
  • Housing material
    Metal
  • Type of switching output
    PNP
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-45848-57abf935dc9c8a3bf8ff9509a64617c0.pdf (PDF, 1.01 MB)
