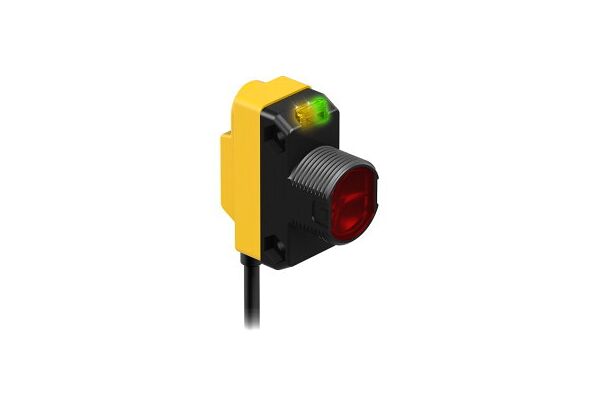

QS18VP6LDQ Photoelectric Sensor, Diffuse Mode Laser Sensor
Manufacturer: Turck Code: 3073042 SKU: 0662488730420
Photoelectric Sensor, Diffuse Mode Laser Sensor, Operating voltage 10…30 VDC, Max. range 300 mm, Cable length 0.15 m, Cable with male end, M12 × 1, 4-pin, PVC, 150 mm, Protection class IP67, LED all-round visible, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, NPN switching output, changeover
- SKU0662488730376
- Manufacturer code3073037
- Type of electric connectionConnector M12
- Type of switching outputNPN
- Type of switch functionChange-over contact (NO/NC)
- Construction type housingCuboid

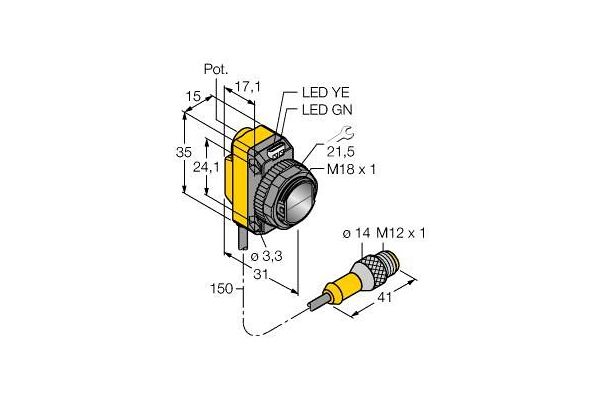

- Width sensor15 mm
- Height of sensor35 mm
- Length of sensor31 mm
- Material of optical surfacePlastic
- Ambient temperature-10 - 50 °C
- Response time0.7 s
- Switching frequency700 Hz
- Laser protection classClass 1
- Wavelength of the sensor650 nm
- Type of lightPolarity free red light
- Suitable for safety functionsfalse
- Degree of protection (IP)IP67
- Material of cable sheathPolyvinyl chloride (PVC)
- Max. switching distance300 mm
- Diameter sensor18 mm
- Housing materialPlastic
- Type of switching outputNPN
- Connector gendermale
- Cable length (m)0.15
This product is unavailable
This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
- Manufacturer Turck
Product attachments
file-42764-c6cba038163fcaf31077374cdde0cfeb.pdf (PDF, 664.42 kB)Related products
