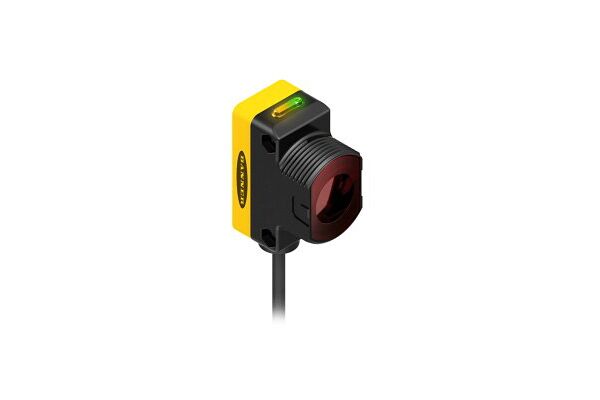

QS30FF200QPMA16 Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

QS30FF200QPMA16

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppression, Operating voltage 10…30 VDC, Max. range 200 mm, Cable length 0.15 m, Cable with male end M12 × 1, 5-pin, PUR, 150 mm, Protection class IP67, LED all-round visible, Operating voltage: 10…30 VDC, Switching output, bipolar, Light or dark operation

  • SKU
    0662488730871
  • Manufacturer code
    3073087
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    22 mm
  • Height of sensor
    49 mm
  • Length of sensor
    35 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 70 °C
  • Response time
    2 s
  • Switching frequency
    250 Hz
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyurethane (PUR)
  • Rated switching distance
    200 mm
  • Max. switching distance
    200 mm
  • Diameter sensor
    30 mm
  • Adjustment range
    0 - 200 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Connector gender
    male
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-39839-8b94d0cac75128e9443be26187f4d6e6.pdf (PDF, 631.95 kB)
