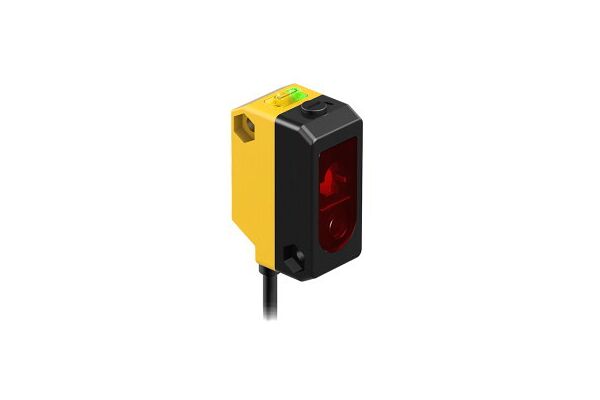

QS18VP6DB Photoelectric Sensor, Diffuse Mode Sensor

QS18VP6DB

Photoelectric Sensor, Diffuse Mode Sensor, Operating voltage 10…30 VDC, Max. range 450 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, LED all-round visible, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488616663
  • Manufacturer code
    3061666
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid
  • Width sensor
    15 mm
  • Height of sensor
    35 mm
  • Length of sensor
    21.1 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 70 °C
  • Response time
    0.6 s
  • Switching frequency
    800 Hz
  • Wavelength of the sensor
    940 nm
  • Type of light
    Infrared light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Max. switching distance
    450 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-39733-fe12cdb48033e0571d1c9262d5bed363.pdf (PDF, 283.65 kB)
