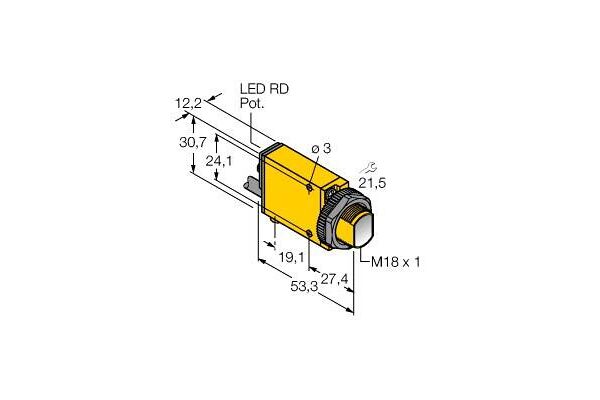

SM312D W/30' Photoelectric Sensor, Diffuse Mode Sensor

SM312D W/30'

Photoelectric Sensor, Diffuse Mode Sensor, Operating voltage 10…30 VDC, Max. range 380 mm, Cable length 9 m, Cable, PVC, 2 m, Protection class IP67, Connection cable, 9 m, Operating voltage: 10…30 VDC, Switching output, bipolar, Light/dark operation

  • SKU
    0662488258016
  • Manufacturer code
    3025801
  • Type of electric connection
    Cable
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    12.3 mm
  • Height of sensor
    30.7 mm
  • Length of sensor
    53.3 mm
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 70 °C
  • Response time
    1 s
  • Switching frequency
    500 Hz
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Max. switching distance
    380 mm
  • Diameter sensor
    18 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Cable length (m)
    2
    9

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
