Q60VR3AF2000 W/30 Photoelectric Sensor, Diffuse Mode Sensor with Adjustable Background Suppression
Manufacturer: Turck Code: 3069624 SKU: 0662488696245
Photoelectric Sensor, Laser Sensor, Diffuse Mode, with Adjustable Background Suppression, Operating voltage 24…250 VAC / 12…250 VDC, Max. range 2000 mm, Cable length 0.15 m, Cable with male end 1/2”, 4-pin, PUR, 150 mm, Protection class IP67, 5-segement LED display, Signal indication, Keylock, Switch ON/OFF delay, adjustable between 8…16 ms, Operating voltage: 12…250 VDC or 24…250 VAC, Relay output
- SKU0662488719715
- Manufacturer code3071971
- Type of electric connectionConnector 1/2 inch
- Type of switching outputRelay contact
- Type of switch functionChangeover contact (NO/NC)

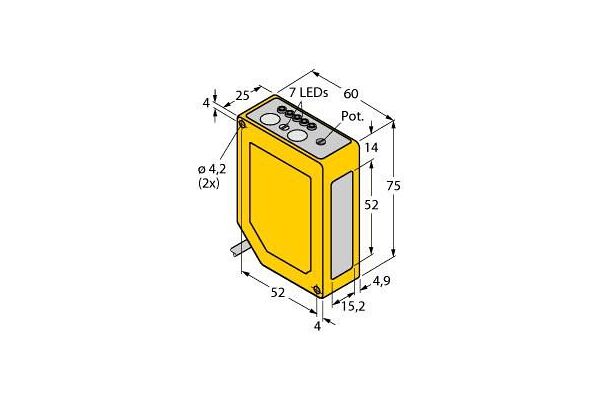

- Construction type housingCuboid
- Width sensor25 mm
- Height of sensor75 mm
- Length of sensor60 mm
- Material of optical surfacePlastic
- Ambient temperature-10 - 45 °C
- Response time15 s
- Switching frequency33 Hz
- Laser protection classClass 2
- Wavelength of the sensor650 nm
- Type of lightPolarity free red light
- Suitable for safety functionsfalse
- Degree of protection (IP)IP67
- Material of cable sheathPolyurethane (PUR)
- Rated switching distance2000 mm
- Max. switching distance2000 mm
- Adjustment range200 - 2000 mm
- Housing materialPlastic
- Connector gendermale
- Cable length (m)0.15
This product is unavailable
This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
- Manufacturer Turck
Product attachments
file-34122-3d81c3b20f65ca367e6f439729d40b56.pdf (PDF, 540.26 kB)Related products
