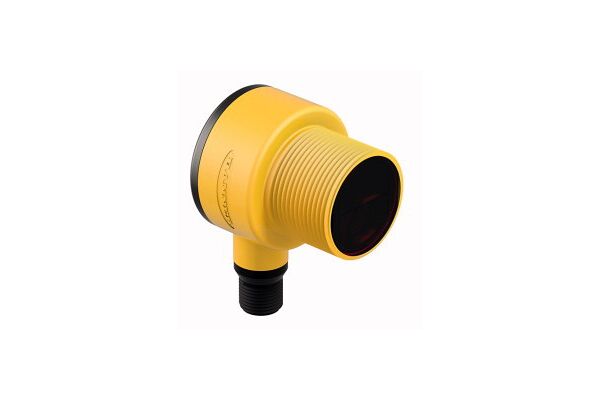

T30SCP6FF200Q Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

T30SCP6FF200Q

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppression, Operating voltage 10…30 VDC, Max. range 200 mm, M12 × 1 male connector, 4-pin, Protection classes IP67/IP69K, Ambient temperature: -40 °C…+70 °C, Insensitive to fluorescent tubes, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488830403
  • Manufacturer code
    3083040
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Programmable/configurable
  • Width sensor
    40 mm
  • Height of sensor
    64 mm
  • Length of sensor
    45 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    3 s
  • Switching frequency
    160 Hz
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • Suitable for safety functions
    false
  • Setting procedure
    Other
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Rated switching distance
    200 mm
  • Max. switching distance
    200 mm
  • Diameter sensor
    30 mm
  • Adjustment range
    0 - 200 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-31804-850f72b419a7c3a3732a3f6565a72684.pdf (PDF, 1.13 MB)
