T18RW3FF100 W/30 Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

T18RW3FF100 W/30

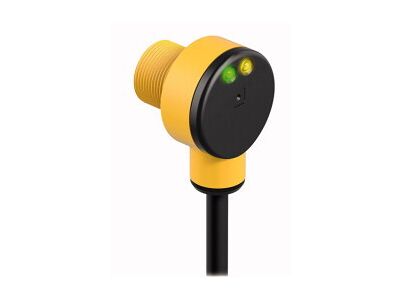

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppression, Operating voltage 20…250 VAC, Max. range 100 mm, Cable length 9 m, Cable, 2 m, Protection class IP67, Ambient temperature: -40…+70 °C

  • SKU
    0662488339586
  • Manufacturer code
    3033958
  • Type of electric connection
    Cable
  • Type of switching output
    Relay contact
  • Type of switch function
    Other
  • Width sensor
    30 mm
  • Height of sensor
    41.5 mm
  • Length of sensor
    30 mm
  • Sensing mode
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    16 s
  • Switching frequency
    40 Hz
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Rated switching distance
    100 mm
  • Max. switching distance
    100 mm
  • Diameter sensor
    18 mm
  • Adjustment range
    0 - 100 mm
  • Housing material
    Plastic
  • Cable length (m)
    2
    9

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-30572-e88c4e1ee4cbdc5b4c07d919a4d49289.pdf (PDF, 898.98 kB)
