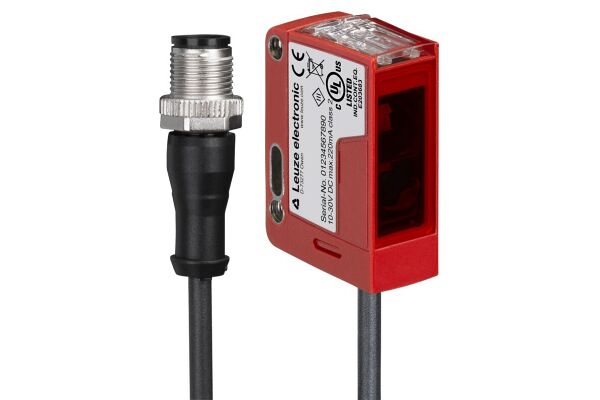

DRT25C.3R/L6-200-M12 Dynamic reference diffuse sensor

DRT25C.3R/L6-200-M12
A dynamic reference diffuse sensor designed for precise detection of bottles and cans.
  • SKU
    2110-50145966
  • Manufacturer code
    50145966
  • Pre failure notice
    false
  • With time function
    false
  • Max. output current
    100 A
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Number of semiconductor outputs with signalling function
    2
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Type of electric connection
    Cable with connector
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Anticoincidence
  • Operation agent-safety class
    Safety class 3
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Width sensor
    15 mm
  • Height of sensor
    42.7 mm
  • Length of sensor
    30 mm
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Plastic
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • Max. output current at protected output
    0 mA
  • Ambient temperature
    -10 - 50 °C
  • Response time
    1.66 s
  • Switching frequency
    300 Hz
  • Switching voltage of OSSD at state "high"
    0 V
  • Rated control supply voltage DC
    12 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • Wavelength of the sensor
    645 nm
  • Type of light
    Polarity free red light
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Teach-In
  • Material of cable sheath
    Polyurethane (PUR)
  • Min. reflector distance
    80 mm
  • Transmission range of the safety field
    0.08 m
  • Supply voltage
    12 ... 30
  • Construction type housing
    Cubic
  • Switching frequency
    300
  • Ambient temperature, operation (°C)
    -10 ... 50
  • Most suitable applications
    Detection of bottle and can containers.
  • Standard for interfaces
    IO-Link
  • Operational controls
    Teach button
  • Manufacturer Leuze

Product attachments

DS_DRT25C-3R-L6-200-M12_eng_50145966 (LINK)
