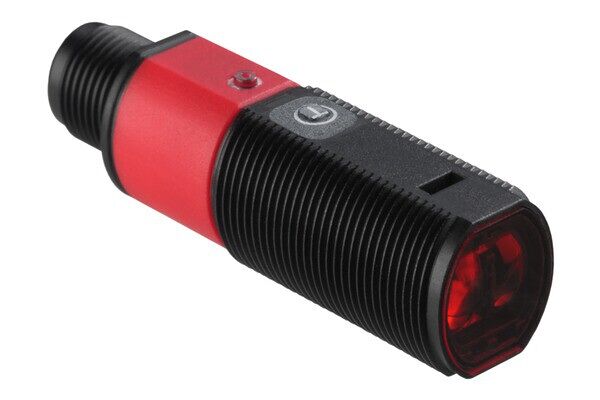

Application: Detection of dark objects at short range; Special version: V-optics; Operating range limit, white 90%: 0.001 ... 0.13 m; Light source: LED, Infrared; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Switching output 1: Transistor, PNP, Light switching; Switching output 2: Transistor, PNP, Dark switching; Switching frequency: 500 Hz; Connection: Connector, M12, Plastic, 4 -pin; Design, housing: Cylindrical; Thread size: M18; Dimensions: 18 mm x 46 mm; Housing material: Plastic; Operational controls: Teach button; Ambient temperature, operation: -40 ... 60 °C; Degree of protection: IP 67

SKU

2110-50133945
Manufacturer code

50133945
Pre failure notice

false
With time function

false
Max. output current

100 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of electric connection

Radial plug
Type of switching output

PNP
Type of switch function

Other
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder plain
Length of sensor

46 mm
Sensing mode

Light switching
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
Max. output current at protected output

0 mA
Ambient temperature

-40 - 60 °C
Response time

1 s
Switching frequency

500 Hz
Switching voltage of OSSD at state "high"

0 V
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Wavelength of the sensor

850 nm
Type of light

Infrared light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Setting procedure

Teach-In
Material of cable sheath

Other
Diameter sensor

18 mm
Supply voltage

10 ... 30
Construction type housing

Cylindrical
Switching frequency

500
Ambient temperature, operation (°C)

-40 ... 60
Special version

V-optics
Most suitable applications

Detection of dark objects at short range.
Operational controls

Teach button

Manufacturer Leuze
