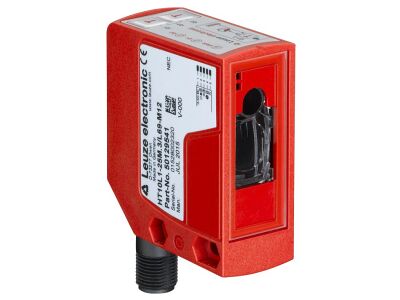

Diffuse sensor with background suppression equipped with deactivation input and two independent switching outputs.

SKU

2110-50129542
Manufacturer code

50129542
Triangulation

Background fade-out
Pre failure notice

false
With time function

false
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of contact energized outputs with signalling function

0
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of electric connection

Cable
Type of switching output

Other
Type of switch function

Anticoincidence
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

25 mm
Height of sensor

65 mm
Length of sensor

55 mm
Sensing mode

Light-/dark switching
Material of optical surface

Glass
Housing material

Plastic
Plastic
Plastic
Plastic
Max. output current at protected output

0 mA
Ambient temperature

-40 - 50 °C
Response time

50 s
Switching frequency

40 Hz
Switching voltage of OSSD at state "high"

0 V
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

Class 1
Wavelength of the sensor

658 nm
Type of light

Laser diode, red light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Setting procedure

Manual adjustment
Material of cable sheath

Polyurethane (PUR)
Supply voltage

18 ... 30
Construction type housing

Cubic
Switching frequency

40
Ambient temperature, operation (°C)

-40 ... 50
Special version

2 independent switching outputs
Deactivation input
Most suitable applications

Compartment fine positioning Exact object positioning Push-through protection in pallet warehouse
Standard for interfaces

IO-Link
Operational controls

Membrane keyboard
