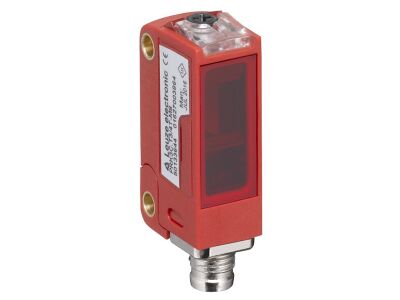

HRTL 96B M/6.9S-S12 Diffuse sensor with background suppression

HRTL 96B M/6.9S-S12
Compact diffuse sensor with background suppression featuring a small light spot and deactivation input.
  • SKU
    2110-50110990
  • Manufacturer code
    50110990
  • Triangulation
    Background fade-out
  • Pre failure notice
    false
  • With time function
    false
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Number of semiconductor outputs with signalling function
    1
  • Number of contact energized outputs with signalling function
    0
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Type of electric connection
    Connector M12
  • Type of switching output
    Other
  • Type of switch function
    Anticoincidence
  • Operation agent-safety class
    Safety class 2
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Width sensor
    30 mm
  • Height of sensor
    90 mm
  • Length of sensor
    70 mm
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Glass
  • Housing material
    Metal
    Metal
    Metal
    Metal
  • Max. output current at protected output
    0 mA
  • Ambient temperature
    -40 - 50 °C
  • Response time
    5 s
  • Switching frequency
    10 Hz
  • Switching voltage of OSSD at state "high"
    0 V
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • Laser protection class
    Class 2
  • Wavelength of the sensor
    658 nm
  • Type of light
    Laser diode, red light
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Teach-In
  • Supply voltage
    18 ... 30
  • Construction type housing
    Cubic
  • Switching frequency
    10
  • Ambient temperature, operation (°C)
    -40 ... 50
  • Special version
    Small light spot (S)
    Deactivation input
  • Operational controls
    Teach button
  • Manufacturer Leuze

Product attachments

DS_HRTL96BM_TOF_en_50109888 (LINK)
