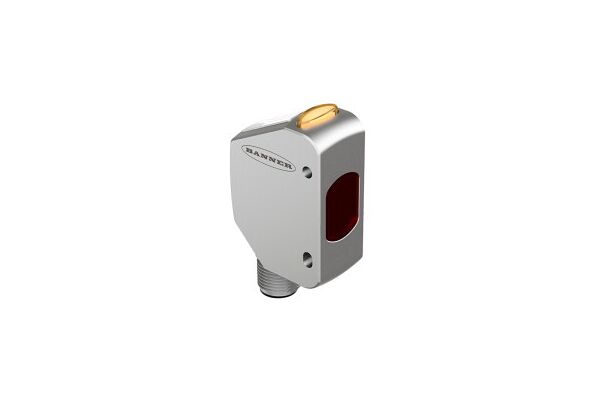

Q4XFILAF110-Q8 Photoelectric Sensor, Laser Distance Sensor (Triangulation), With Analog Output

Q4XFILAF110-Q8

Photoelectric Sensor, Laser Distance Sensor (Triangulation), With Analog Output, Operating voltage 10…30 VDC, Max. range 110 mm, 4-digit 7-segment LED display, 3 buttons, Output indicator (yellow), IP67/69K, ECOLAB-certified, Range: 35…110 mm, Laser class 1, red, 655 nm, acc. to IEC 60825-1:2007, Operating voltage: 12…30 VDC, Analog output: 4 … 20 mA, Rectangular design, Stainless steel housing (1.4404 )

  • SKU
    0662488975425
  • Manufacturer code
    3097542
  • Type of analogy output
    4 mA ... 20 mA
  • Type of electric connection
    Connector M12
  • Type of switching output
    Other
  • Supply voltage
    10 - 30 V

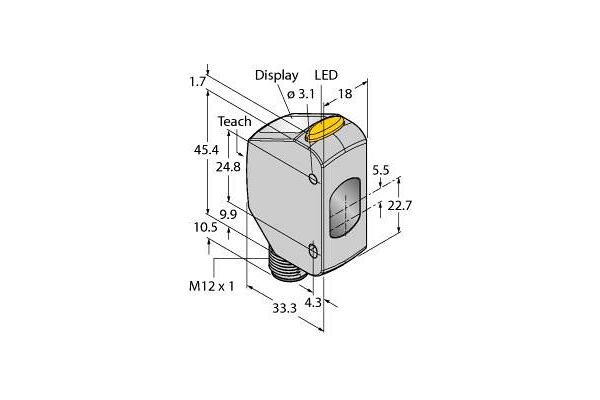

  • Width sensor
    18 mm
  • Height of sensor
    57.5 mm
  • Length of sensor
    33.5 mm
  • Construction type housing
    Cuboid
  • Laser protection class
    Class 1
  • Type of light
    Polarity free red light
  • Degree of protection (IP)
    IP67
  • Material of optical surface
    Other
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Other

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-38725-45b5e691e94da8ea8d0a618c4d0fdf9a.pdf (PDF, 588.25 kB)
