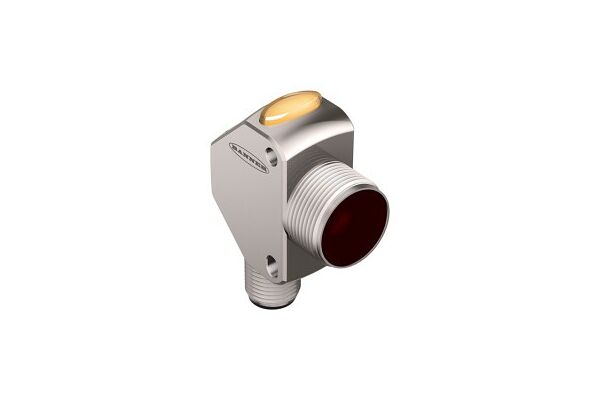

Photoelectric Sensor, Laser Sensor, Operating voltage 10…30 VDC, Max. range 150 mm, 3-digit 7-segment LED display, 2 buttons, Output indicator (yellow), IP67/69K, Range: 0…150 mm, Fixed background suppression at 190 mm, Laser class 2, red, 655 nm, acc. to IEC 60825-1:2007, Operating voltage: 10…30 VDC, 1 × PNP, 1 × NPN switching output, Rectangular model with offset M18 thread, Die-cast zinc housing
- SKU0662488953416
- Manufacturer code3095341
- Type of electric connectionConnector M12
- Type of switching outputPNP/NPN
- Type of switch functionChange-over contact (NO/NC)

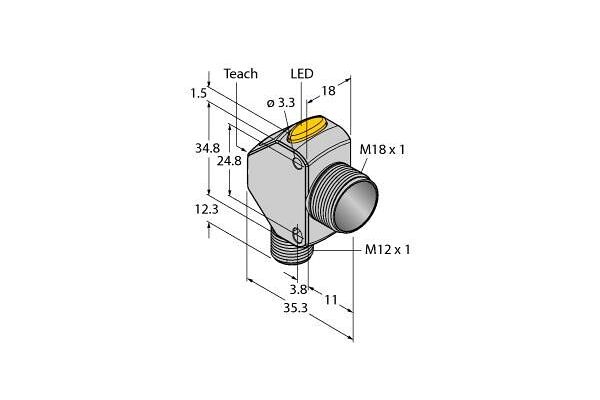

- Width sensor18 mm
- Height of sensor48.6 mm
- Length of sensor35.3 mm
- Construction type housingCuboid
- Laser protection classClass 2
- Type of lightPolarity free red light
- Degree of protection (IP)IP67
- Ambient temperature-10 - 50 °C
- Material of optical surfaceOther
- Material of cable sheathPolyvinyl chloride (PVC)
- Diameter sensor18 mm
- Housing materialOther
- Type of switching outputPNP/NPN
This product is unavailable
This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
- Manufacturer Turck
