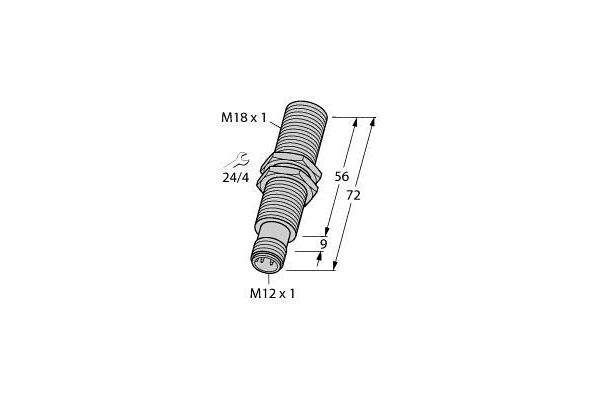

BI8-M18E-LIU-H1141 Inductive Sensor, With Analog Output

BI8-M18E-LIU-H1141

Inductive Sensor, With Analog Output, Operating voltage 15…30 VDC, Measuring range 1 mm - 5 mm, Flush, Threaded barrel, M18 x 1, Chrome-plated brass, 4‐wire, 15…30 VDC, Analog output, 0…10 V and 0…20 mA, M12 x 1 male connector

  • SKU
    4047101072426
  • Manufacturer code
    1535561
  • Operating voltage
    15 - 30 V
  • Supply voltage
    15 - 30 V
  • Limiting frequency
    200 Hz
  • Relative linearity deflection
    5 %
  • Measuring range
    1 - 5 mm
  • Type of electric connection
    Plug-in connection
  • Type of analogy output
    0 V ... 10 V
  • Mechanical mounting condition for sensor
    Concise
  • Housing material
    Other
  • Material active area of sensor
    Plastic
  • Construction type housing
    Cylinder, screw-thread
  • Length of sensor
    72 mm
  • Diameter sensor
    18 mm
  • Ambient temperature
    -25 - 70 °C
  • Degree of protection (IP)
    IP67
  • Flush / Non-flush
    Flush
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-46102-e94d7fc7532bc8ebdd6a37ad7e3363e3.pdf (PDF, 532.22 kB)
