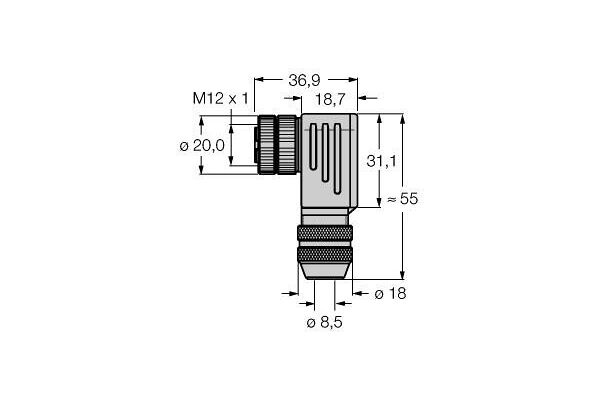

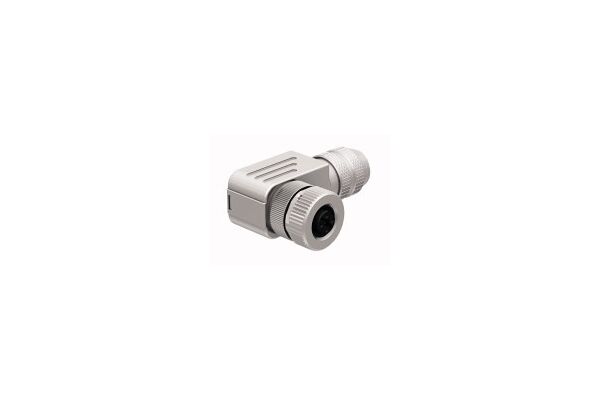

BMSWS8251-8.5 Field-Wireable Connector, Male Connector M12 × 1, Angled
Manufacturer: Turck Code: 6904724 SKU: 4047101458565
Field-Wireable Connector, Female Connector M12 × 1, Angled, Voltage 125 V, For use in PROFIBUS-DP applications, Up to 12 Mbps, Shielding via iris spring connection, B-coding, Metal housing, Screw-clamp terminal, 5-pin, M18 × 1 metric screw-in thread, Cable diameter 6.0…8.5 mm
- SKU4047101458558
- Manufacturer code6904723
- Rated current In4 A
- Ambient temperature-40 - 85 °C
- Rated voltage125 V
- Material of contact surfaceGold
- Contact typeBus
- PositioningAngled
- Type of electric connectionOther
- Degree of protection (IP), mountedIP67
- Diameter connector8.5 mm
- Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.75 mm²
- Connectable conductor cross section solid-core0.14 - 0.75 mm²
- Connectable conductor cross section fine-strand without cable end sleeve0.14 - 0.75 mm²
- Connectable conductor cross section multi-wired0.14 - 0.75 mm²
- CodingB-coded
- ShieldedYes
- Housing materialBrass
- Network protocolPROFIBUS
- Manufacturer Turck
