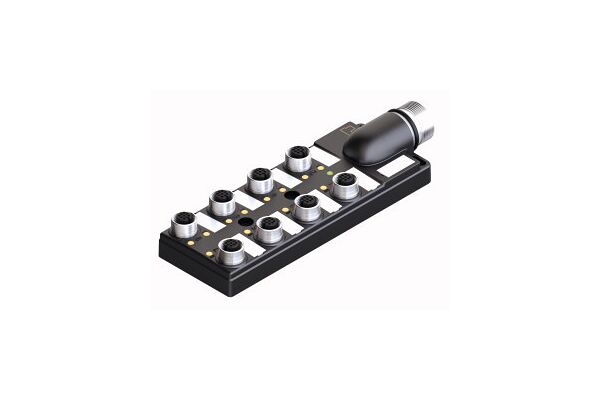

TB-8M12-5P3-CS19H Passive Actuator/Sensor Box, M12 × 1, 8-port, with M23 Connector for Supply Cabl

TB-8M12-5P3-CS19H

Passive Actuator/Sensor Box, M12 × 1, 8-port, with M23 Connector for Supply Cable, Voltage 30 V, Housing material: Nylon, Housing color: black, Protection class IP67, RoHS-compliant, CE compliant, LED (PNP circuit), I/O port (number of pins): 4-pin + PE

  • SKU
    4047101276244
  • Manufacturer code
    6611967
  • Material of contact surface
    Gold
  • Material insulation body
    Polyamide (PA)
  • With LED indication
    false
  • Housing material
    Plastic
  • Type of branches for sensor-/actuator cables
    M12
  • Operating voltage
    30 - 30 V
  • Operating temperature
    -40 - 85 °C
  • Material contact body
    Brass
  • Thread sleeves sensor/actuator slots
    M12
  • Rated voltage
    30
  • Housing color
    Black
  • Type of switching output
    PNP
  • Manufacturer Turck
