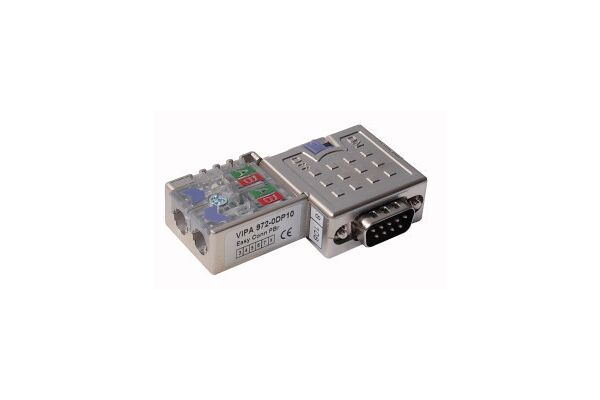

FW-D9TLEDKU9PG-W-FC-ME-SH-8.5 Field-Wireable Connector, Sub-D Connector, Male Connector, Angled

FW-D9TLEDKU9PG-W-FC-ME-SH-8.5

Field-Wireable Connector, Sub-D Connector, Male Connector, Angled, Voltage 12 V, For use in PROFIBUS-DP applications, Integrated controller for clock rates up to 12 Mbps, Integrated LEDs for bus cable functions, PG diagnostic socket, integrated, Activatable terminating resistor, 90° cable outlet, Shieldable, Metal housing, IDC quick connection, 9-pin, Cable diameter 6.0…8.0 mm, UL approval

  • SKU
    4047101506853
  • Manufacturer code
    6604220
  • Rated current In
    4 A
  • Ambient temperature
    -20 - 75 °C
  • Diameter connector
    8 mm
  • Positioning
    Angled
  • Rated voltage
    12 V
  • Pollution degree
    1
  • Type of electric connection
    Insulation displacement connection
  • Material of contact surface
    Gold
  • Housing material
    Zinc
  • Degree of protection (IP), mounted
    IP20
  • Positioning
    angled
  • Connector gender
    male
  • Network protocol
    PROFIBUS
  • Manufacturer Turck

Product attachments

file-40440-fa1a6cadfcf2b32a0f00df28853c3fa1.pdf (PDF, 780.77 kB)
